Automatic Swinging and Sliding Gates

This project was developed and implemented during my internship period at Blackfrog Technologies. We attach the actuators to the gates. This actuator can be equipped to the gates that weigh up to 3100 lbs. The opener is equipped with advanced soft start and close features to provide extra safety and a long life. It also features an automatic stop function, which stops the gate when an object is detected; and a pedestrian mode which allows people to easily pass through by opening the gate to 5 feet if required. RF hopping code technology ensures the remote is only accessible to you. In addition, an individual can set the auto-close at time intervals with the option to disable it. The emergency release key allows you to enter or leave your property even if there is a power outage.

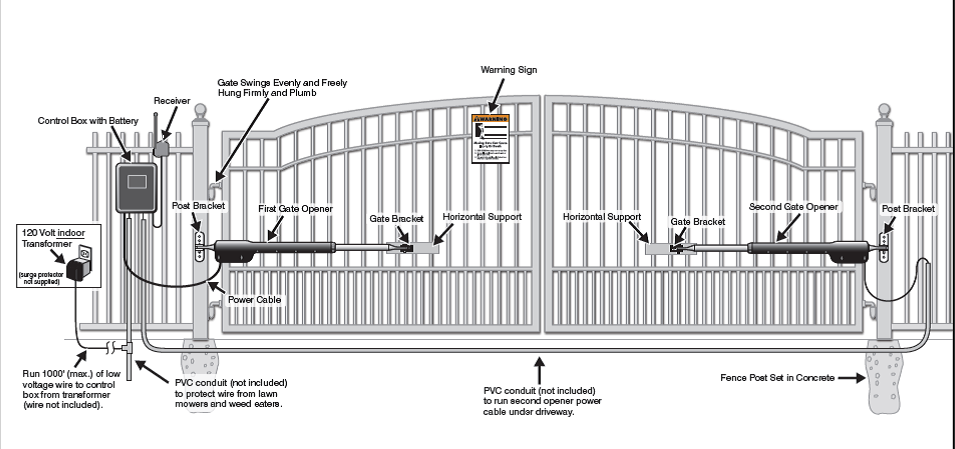

The blueprint of final product after installation is shown below (Swinging gate)
